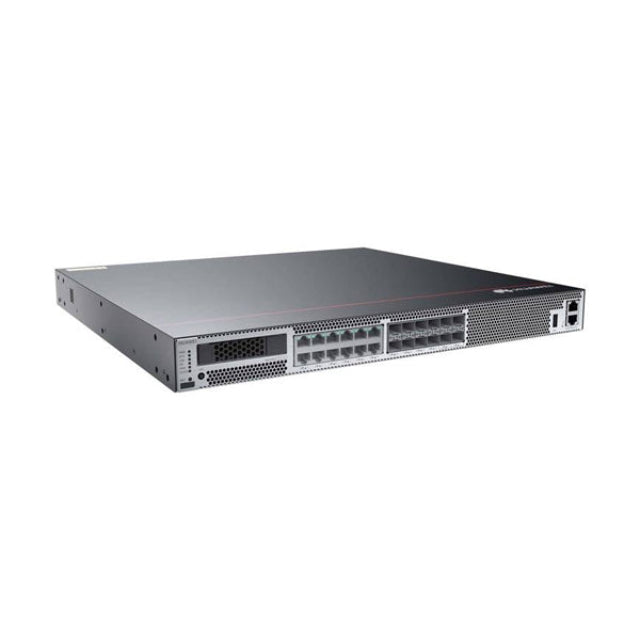

USG6610E-AC HUAWEI USG6000E Series Firewalls

USG6610E-AC

$4,153.00 USD
$4,153.00 USD
Sale Sold out
Shipping calculated at checkout.
Only 6 units left!

USG6610E AC host (12 * GE RJ45 + 8 * GE SFP + 4 * 10Ge SFP +, 1 AC power supply, including SSL VPN 100 users).

Technical Specifications

Item Specification
Installation Type Rack
Cabinet installation standard Cabinet with a depth of 600 mm or above
Dimensions without packaging (H x W x D) [mm(in.)] 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 225 mm x 550 mm x 530 mm (8.86 in. x 21.65 in. x 20.87 in.)
Chassis height [U] 1 U
Weight with packaging [kg(lb)]
  • USG6610E-AC (02352HMD): 10.1 kg (22.27 lb)
  • USG6610E-AC (02352HMD-001): 9.4 kg (20.72 lb)
  • USG6610E-AC (02352HMD-002): 9.4 kg (20.72 lb)
Weight without packaging [kg(lb)]
  • USG6610E-AC (02352HMD): 7.1 kg (15.65 lb)
  • USG6610E-AC (02352HMD-001): 6.7 kg (14.77 lb)
  • USG6610E-AC (02352HMD-002): 6.7 kg (14.77 lb)
CPU 1 CPU, 8 cores/CPU, up to 2.3 GHz
Memory DDR4 8 GB
Storage 32GB
NOR Flash
  • USG6610E-AC (02352HMD): 32 MB
  • USG6610E-AC (02352HMD-001): 64MB
  • USG6610E-AC (02352HMD-002): 64MB
Hard disk Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) from Huawei based on the site requirements. The hard disk is hot swappable.
Console port RJ45
Eth Management port RJ45
Maximum power consumption [W]
  • USG6610E-AC (02352HMD): 161.79 W
  • USG6610E-AC (02352HMD-001): 139 W
  • USG6610E-AC (02352HMD-002): 139 W
Maximum heat dissipation [BTU/hour]
  • USG6610E-AC (02352HMD): 552.02 BTU/hour
  • USG6610E-AC (02352HMD-001): 474.27 BTU/hour
  • USG6610E-AC (02352HMD-002): 474.27 BTU/hour
MTBF [years] 29.34 years
MTTR [hours] 2 hours
Power supply mode AC built-in
Number of power modules 1
Rated input voltage [V] 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] 90 V to 290 V, 47 Hz to 63 Hz
Maximum input current [A] 9 A
Maximum output power [W] 600 W
Types of fans Pluggable
Number of fan modules 3
Heat dissipation mode The fan module locates at the air exhaust of the system.
Airflow direction Air inlet from front and air outlet from rear
Redundant power supply Two power modules are supported for 1+1 power redundancy.
Redundant fans 2+1
Long-term operating temperature [°C(°F)]
  • Without hard disk driver: 0°C to 45°C
  • With hard disk driver: 5°C to 40°C
Storage temperature [°C(°F)] -40°C to 70°C
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]
  • Without hard disk driver: 0 m to 5000 m
  • With hard disk driver: 0 m to 3000 m
Storage altitude [m(ft.)] 0 m to 5000 m
