• JY693A - HPE Aruba AP203H(RW) Access Point
1 1

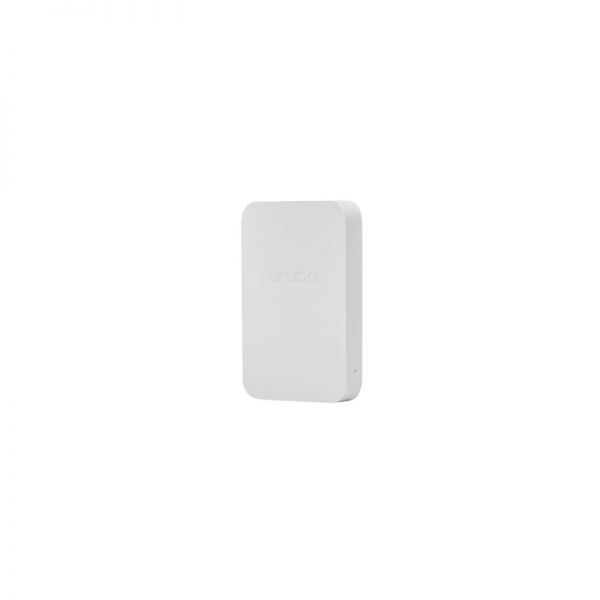

JY693A - HPE Aruba AP203H(RW) Access Point

JY693A

$89.00 USD
$89.00 USD
Sale Sold out
Shipping calculated at checkout.

The aruba 203H Series Unified Hospitality Access Points, cost-effective 802.11ac APs with single- or dual-radio mode, deliver high-performance Wi-Fi networking for hospitality and branch offices, while minimizing costs for low-to-moderate density areas.

Miscellaneous

Included Accessories

Wall mounting kit

MTBF

709,492 hours

Compliant Standards

EN 60950, IEC 60950, UL 60950, CB, FCC, R&TTE, EN 60601-1-2, cTUVus, EN 60601-1, Directive 2006/95/EEC, Directive 72/23/EEC, EN 300 328, EN 301 489, EN 60601-1-1, EN 301 893, R&TTE Directive 1995/5/EC

Networking

Form Factor

Wall mountable

Data Transfer Rate

867 Mbps

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (2.4 GHz): 400 Mbps | Maximum data rate (5 GHz): 867 Mbps

Capacity

BSSIDs per radio: 8

Status Indicators

Power, system, status

Features

Auto-uplink (auto MDI/MDI-X), DFS support, wall mountable, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Energy Efficient Ethernet, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), dual-stream (2x2), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), aruba Beacons Bluetooth Low-Energy (BLE) technology, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM)

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

5 - 93% (non-condensing)

General

Device Type

Wireless access point

Ruggedized Design

Indoor

Width

3.4 in

Depth

1 in

Height

5.5 in

Weight

7.94 oz

Localization

Rwanda

Expansion / Connectivity

Interfaces

1 x 1000Base-T (PoE) - RJ-45 | 2 x pass-through - RJ-45 | 1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A | 1 x management (USB)

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

7.4 Watt

Antenna

Antenna

Internal

Antenna Qty

2

Gain Level

6.3 dBi

Software / System Requirements

OS Required

arubaOS, InstantOS
