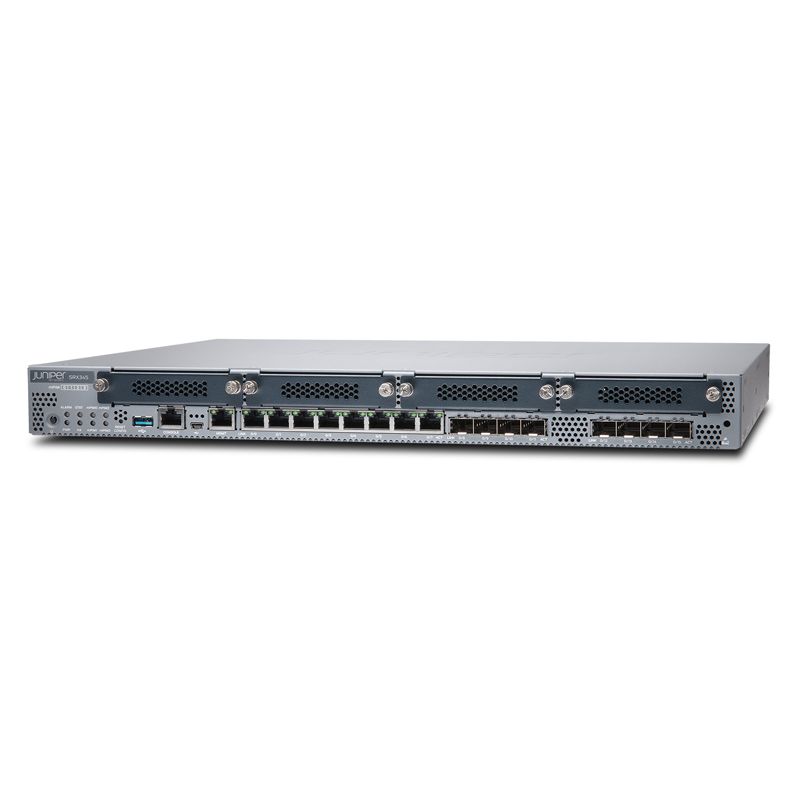

SRX345-SYS-JB-2AC - Juniper SRX Series Service Gateways

SKU:SRX345-SYS-JB-2AC

Regular price $1,625.00 USD
Sale price $1,625.00 USD Regular price
Sale Sold out
Shipping calculated at checkout.
In Stock at Global Warehouses (26 units), New Factory Sealed

The SRX345 supports up to 5 Gbps firewall and 800 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.

SRX345-SYS-JB-2AC Specification

General

Device Type

Security appliance

Height (Rack Units)

1U

Width

17.4 in

Depth

14.6 in

Height

1.7 in

Processor / Memory / Storage

RAM

4 GB

Flash Memory

8 GB

Hard Drive

SSD

Networking

Form Factor

Rack-mountable

Airflow Direction

Front to back airflow

Ports Qty

16

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR

Network / Transport Protocol

RSVP, IPSec, PPPoE, DHCP, DNS, DDNS

Routing Protocol

OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, MSDP, ECMP, MPLS

Remote Management Protocol

SNMP, Telnet, HTTP, SSH, CLI

Performance

Firewall throughput (64-byte packet size): 700 Kpps | Firewall throughput (IMIX): 2 Gbps | Firewall throughput (1518-byte packet size): 5 Gbps | VPN throughput (IPSec): 300 Mbps | VPN throughput (1400-byte packet size): 800 Mbps | IPS throughput: 500 Mbps | Connection rate: 20000 connections per second

Capacity

IPv4 routing table entries: 2000000 | IPv6 routing table entries: 1000000 | Concurrent sessions: 512000 | Security policies: 4000 | Maximum number of NAT rules: 2000 | MAC addresses: 15000 | IPSec VPN tunnels: 2048 | GRE tunnels: 1024 | Security zones: 64 | Virtual routers: 128 | Virtual interfaces (VLANs): 3000 | Maximum number of users: 200

Features

Firewall protection, NAT support, VPN support, PAT support, IPv6 support, Intrusion Prevention System (IPS), URL filtering, DDos attack prevention, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DHCP server, IPv4 support, LLDP support, DHCP relay, DHCP client, J-Flow, Inspect SSL Encrypted Traffic, Generic Routing Encapsulation (GRE), DiffServ Code Point (DSCP) support, MACsec support, anti-virus protection, Virtual Private LAN Service (VPLS), Label Distribution Protocol (LDP)

Encryption Algorithm

DES, Triple DES, MD5, IKE, SSL, SHA-1, PKI, 256-bit AES, IKEv2, 256-bit SHA

Authentication Method

Secure Shell (SSH), X.509 certificates

Compliant Standards

IEEE 802.1p, IEEE 802.1x

IP Telephony

VoIP Protocols

SDP

Expansion / Connectivity

Expansion Slots

4 (total) / 4 (free) x expansion slot

Interfaces

8 x 1000Base-T - RJ-45 | 8 x 1000Base-X - SFP (mini-GBIC) | 1 x console - RJ-45 | 1 x mini-USB | 1 x USB 2.0 - Type A | 1 x management - RJ-45

Miscellaneous

Included Accessories

Rack mount kit

MTBF

240,000 hours

Compliant Standards

FCC Class A certified, RoHS2

Power

Power Device

Internal power supply

Installed Qty

2

Max Supported Qty

2

Power Consumption Operational

122 Watt

Software / System Requirements

OS Provided

JUNOS

Software Included

Junos Software Base

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 - 90% (non-condensing)
