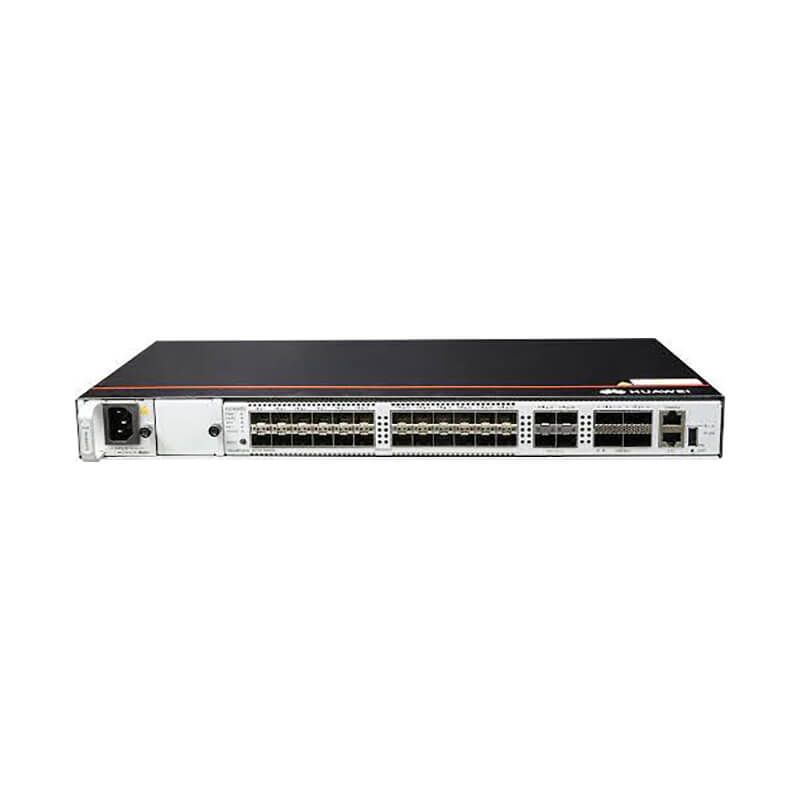

S6730-H28Y4C - Huawei S6700 Series 24Ports Switch

S6730-H28Y4C

$3,245.00 USD
$3,245.00 USD
Sale Sold out
Shipping calculated at checkout.
In Stock at Global Warehouses (29 units), New Factory Sealed

Technical specifications of the S6730-H24X4Y4C

Item Specification
Dimensions with packaging (H x W x D) [mm(in.)] 115 mm x 545 mm x 360 mm (4.53 in. x 21.46 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.4 kg (7.5 lb)
Weight with packaging [kg(lb)] 4.65 kg (10.25 lb)
Typical power consumption [W] 186 W
Typical heat dissipation [BTU/hour] 634.65 BTU/hour
Maximum power consumption [W] 253 W
Maximum heat dissipation [BTU/hour] 863.26 BTU/hour
Static power consumption [W] 116 W
MTBF [years] 54.68 years
MTTR [hours] 2 hours
Availability > 0.99999
Noise at normal temperature (acoustic power) [dB(A)] 64.5 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 51.7 dB(A)
Number of card slots 0
Number of power slots 2
Number of fans modules 3
Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V]
  • AC input: 100 V AC to 240 V AC; 50/60 Hz
  • High-voltage DC input: 240 V DC
  • DC input: –48 V DC to –60 V DC
Input voltage range [V]
  • AC input: 90–290 V AC; 45–65 Hz
  • High-voltage DC input: 190 V DC to 290 V DC
  • DC input: -38.4 V DC to -72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Memory 4 GB
Flash memory 2 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Power supply surge protection [kV]
  • AC power module configured: ±6 kV in differential mode, ±6 kV in common mode
  • DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
Ingress protection level (dustproof/waterproof) IP20
Types of fans Built-in
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification

EMC certification

Safety certification

Manufacturing certification
