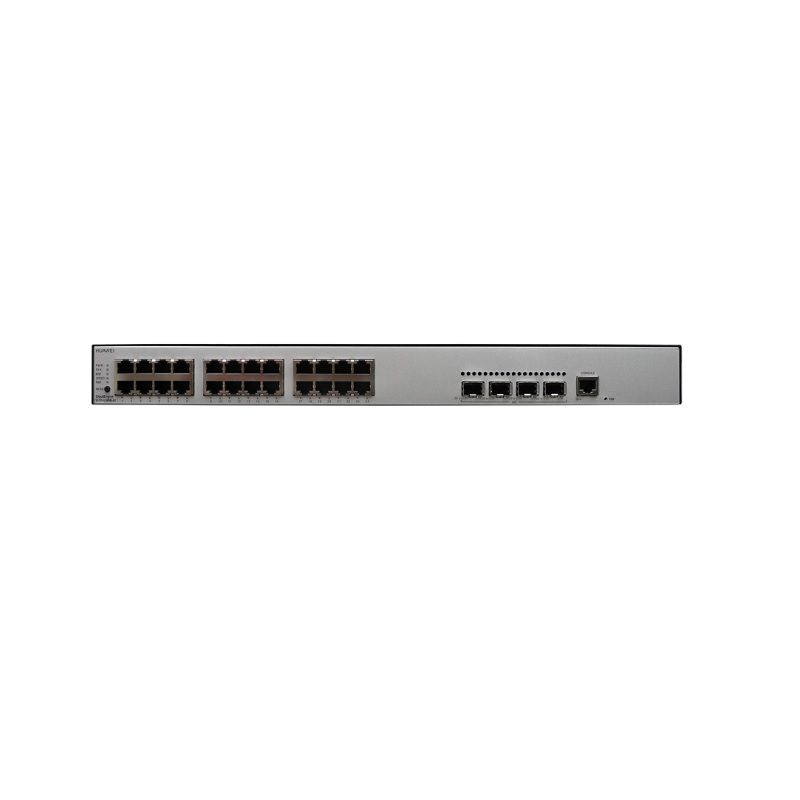

S5735-L24P4S-A1 Huawei S5700 Series 24Ports POE Switch

SKU:S5735-L24P4S-A1

Regular price $730.00 USD
Sale price $730.00 USD Regular price
Sale Sold out
Shipping calculated at checkout.
In Stock at Global Warehouses (30 units), New Factory Sealed

Upgrade your enterprise campus network with the S5735-L24P4S-A1 Huawei S5700 Series 24Ports POE Switch. Its 24 10/100/1000Base-T Ethernet ports and 4 Gigabit SFP ports offer flexible Ethernet networking and reliable connectivity. Powered by Huawei's Versatile Routing Platform (VRP), this switch provides secure and efficient service processing for an exceptional network experience.

S5735-L24P4S-A1 Specification

Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Typical power consumption [W] 41.7 W
Typical heat dissipation [BTU/hour] 142.29 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 53.2 W
  100% PoE loads: 433.2 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 181.52
MTBF [year] 55.72 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 38.2 dB(A)
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC

Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC

Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
